Home Products 5MP USB3.0 Color Camera Global Shutter 60FPS Type-C UVC Mini Webcam Supports External Trigger Photograph with Trigger Wire
5MP USB3.0 Color Camera Global Shutter 60FPS Type-C UVC Mini Webcam Supports External Trigger Photograph with Trigger Wire
Share:
DESCRIPTION
  • Feature

    *5MP USB3.0 Global Shutter 60FPS Color Camera with Mini Case with Trigger Wire.

    *Support External Trigger Photography, with externally generated rising pulse square wave.

    *UVC compliance for use in OS Windows, Linux, Android, Mac.

    *Plug and Play, Driverless.



  • Specification

    Model No: KYT-U500-W3GS5

    Sensor:  OX05B1B

    Focus: Manual

    Resolution & frame :

    2592x1944 MJPG 60FPS  YUY2 10FPS

    2560x1440 MJPG 60FPS  YUY2 10FPS

    2048x1536 MJPG 60FPS  YUY2 10FPS

    1600x1200  MJPG 60FPS  YUY2 60FPS

    1920x1080 MJPG 60FPS  YUY2 60FPS

    1280x960 MJPG 60FPS  YUY2 60FPS

    1280x720 MJPG 60FPS  YUY2 60FPS

    640x480 MJPG 60FPS  YUY2 60FPS

    512x512 MJPG 60FPS  YUY2 60FPS

    Compression format: MJPG \ YUY2

    Shutter Type: Global Shutter

    Image Type: Color

    Interface: USB 3.0

    External Trigger Photography Support: with externally generated rising pulse square wave

    Trigger wire: already solder and output two trigger wires

    Lens Parameter: lens 1.7mm,1.9mm,2.1mm,2.8mm,3.6mm,4mm,6mm,8mm,12mm,16mm,25mm optional

    Housing: Aluminum Mini Case

    Voltage: DC5V

    UVC Compliant: Plug and Play, Driverless

    OTG : Support

    Auto exposure AEC: Support

    Auto white blance AEB: Support

    Adjustable parameters: Brightness/Contrast/Color saturation/Definition/Gamma/WB

    Operating Temperature: -20°C to 70°C

    Support OS: Windows, Linux, MAC, Android

  • Product detail
    1、SDK:
    Here is the link to download the SDK,
    choose "SDK for global shutter cameras 20260520"

    Our cameras are UVC compliance, plug and play, no need driver,
    OS support Windows, Linux, Android, Mac.

    also the camera can use for secondary development,
    you could follow UVC protocol to develop and integrate our cameras with your projects.

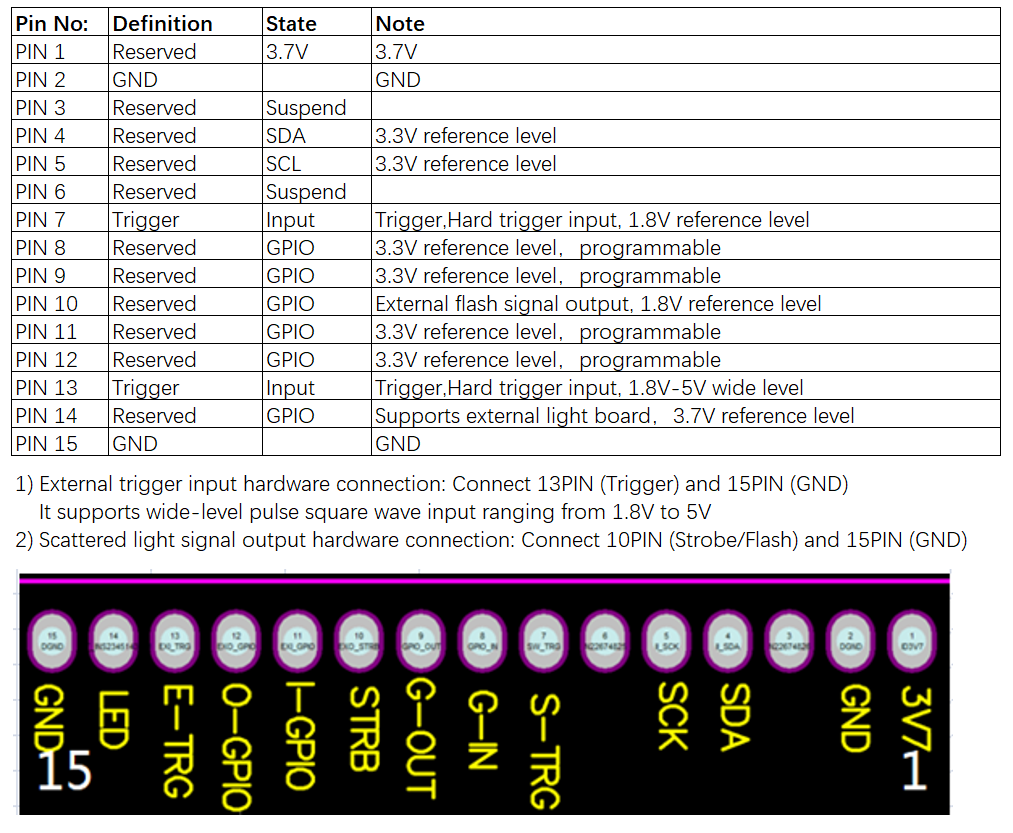

    2、Pin definition:
PRODUCT SHOW
  • 5MP USB3.0 Global Shutter 60FPS Color Camera
